Quadro UD Square up down Luminaire

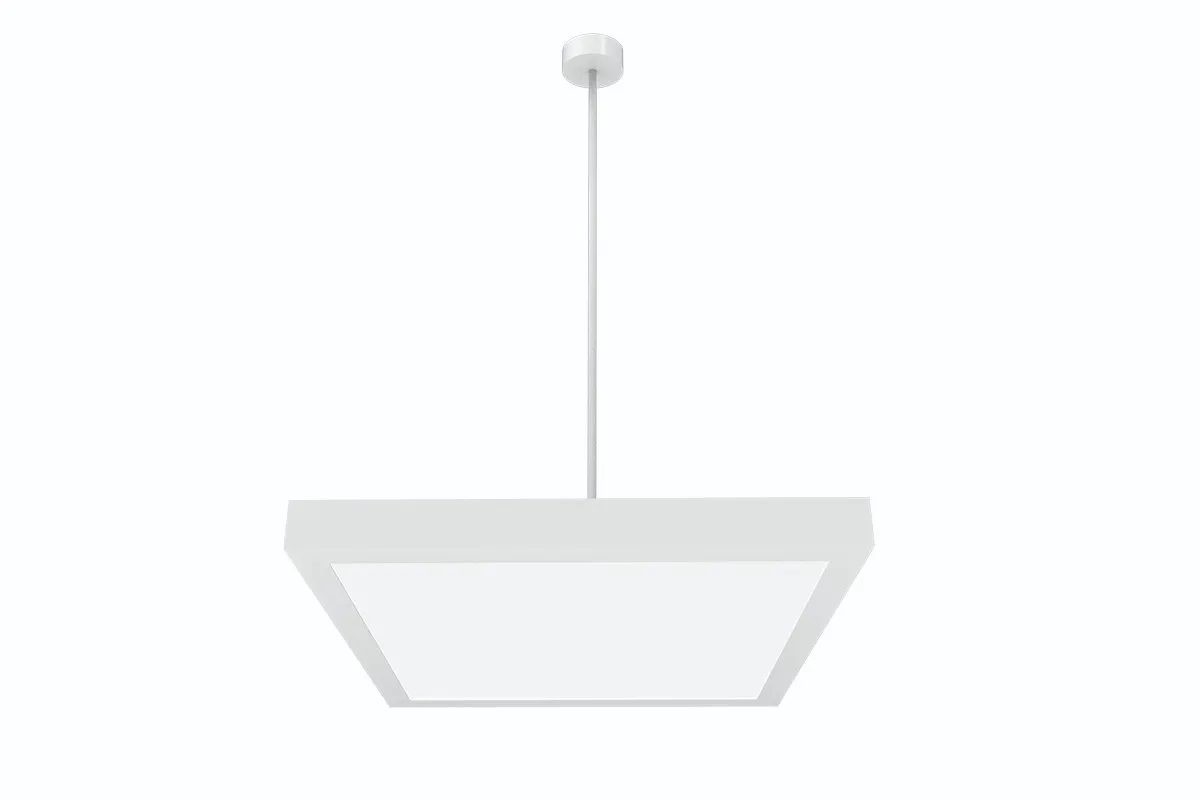

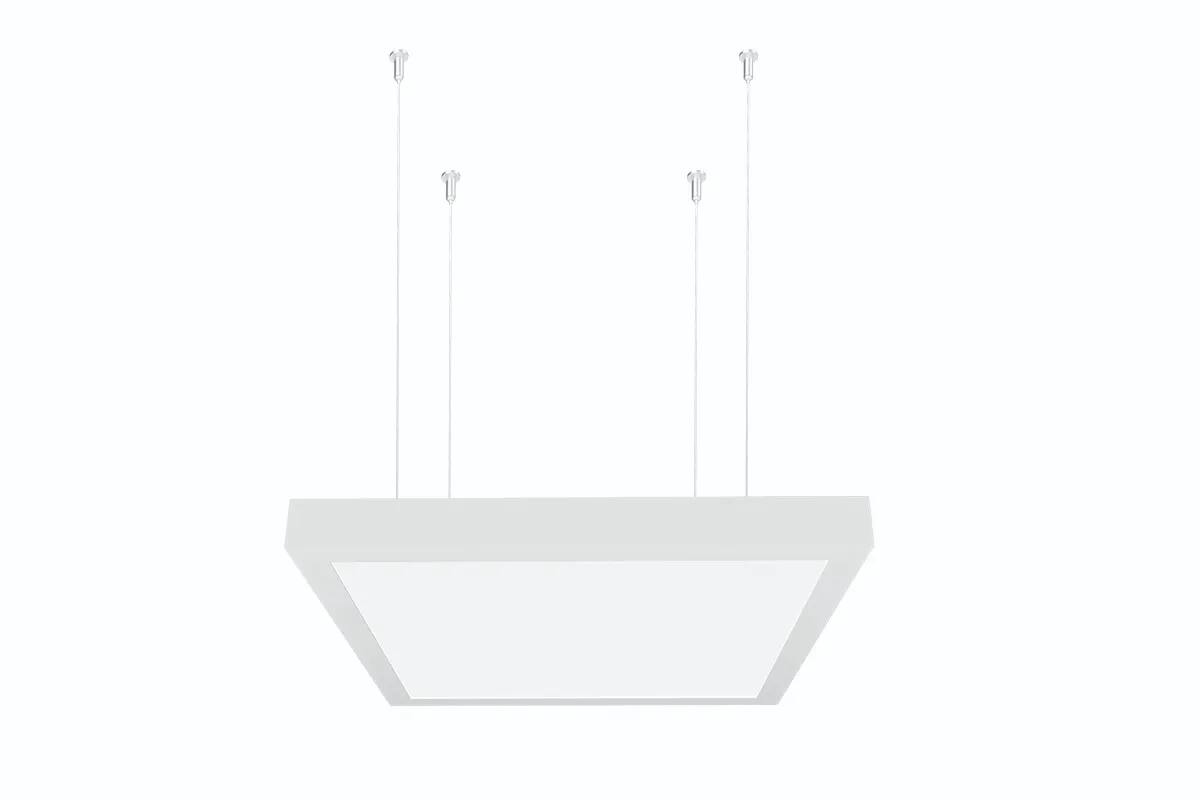

Quadro UD Evolvement from the Quadro family, Quadro UD is able to fulfill surface, pendent and wall mounted applications. The Quadro UD has a timelessly trendy appearance, and delivers intense touch of build quality.

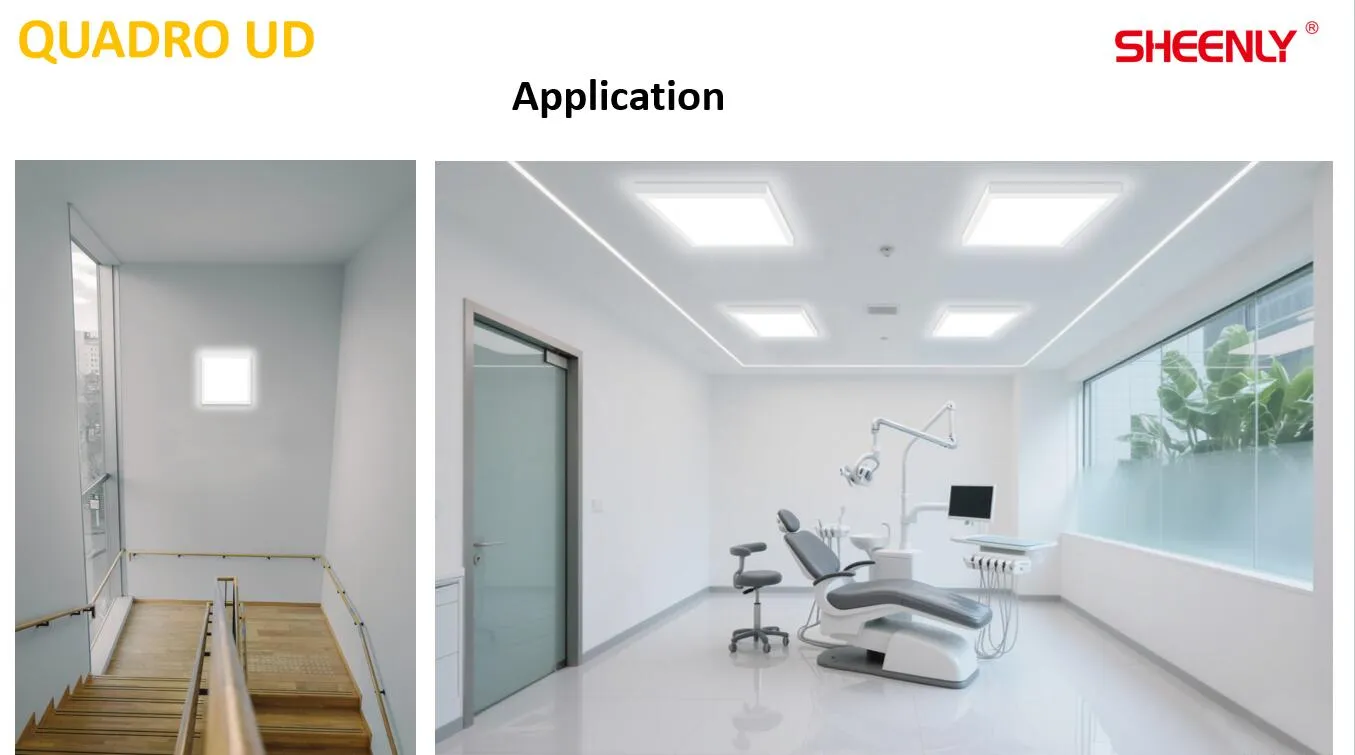

Quadro UD illuminates the front side as well as the back side by creating the so called Halo Effect. This feature can instantly enhance the vibe of any space. It provides outstanding homogeneity on the lighting surface, and further more thanks to the latest engineered optics for low glare, the Quadro UD is fit for core office areas, as well as all other public open spaces such as administration, shops, restaurant and so on.

+86-21-64113138

sales@sheenly.com

+86-18221251137

Quadro UD Square up down Luminaire

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Advantage

Main Features:

- Stunning Design: A memorable, timeless aesthetic with an ultra-slim profile.

- Superior Visual Comfort: UGR <19 and market-leading uniformity

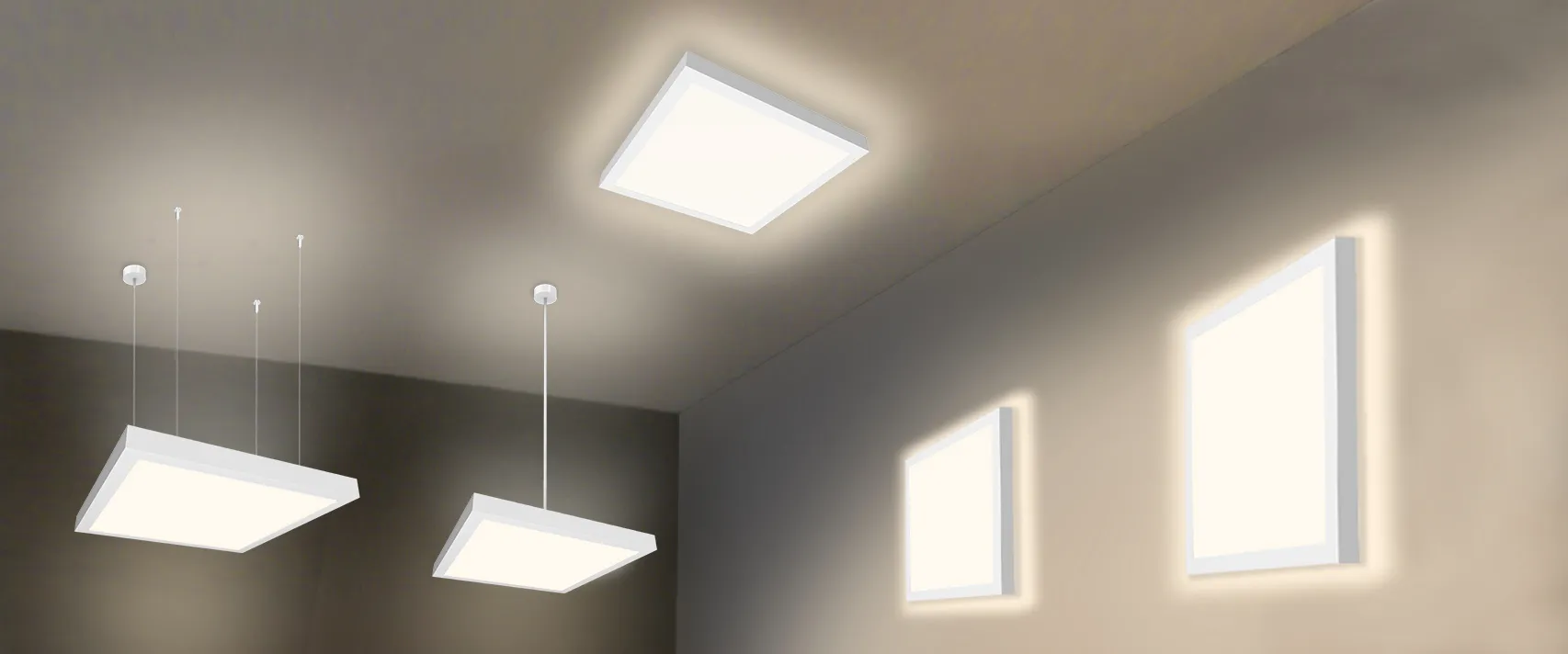

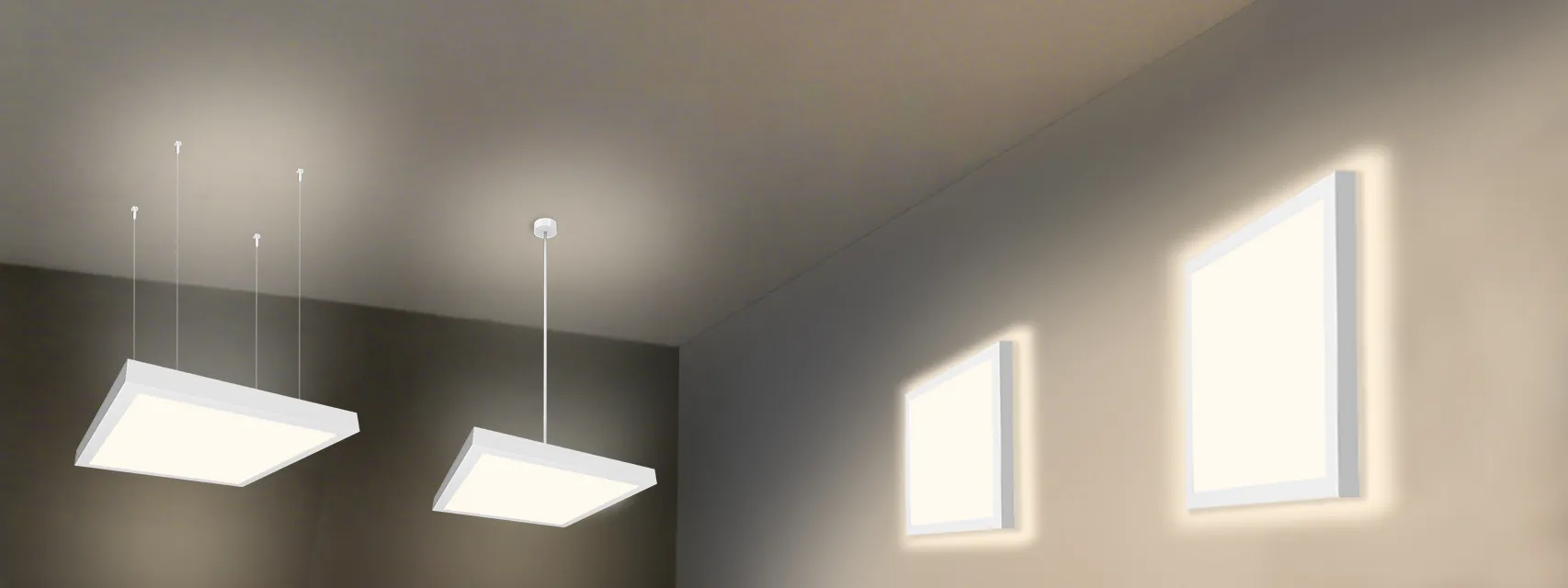

- Unlimited Application: Multiple installation methods: surface, pendant, wall, or pole mount.

- Effortless Installation & Service: Designed for quick, one-person operation.

- Fully Integrated Smart Control: Built-in sensor, DALI, and switchable options with independent front/back gear control.

- Cohesive System: Available in multiple dimensions and pairs perfectly with the RONDO and QUADRO families for a unified solution.

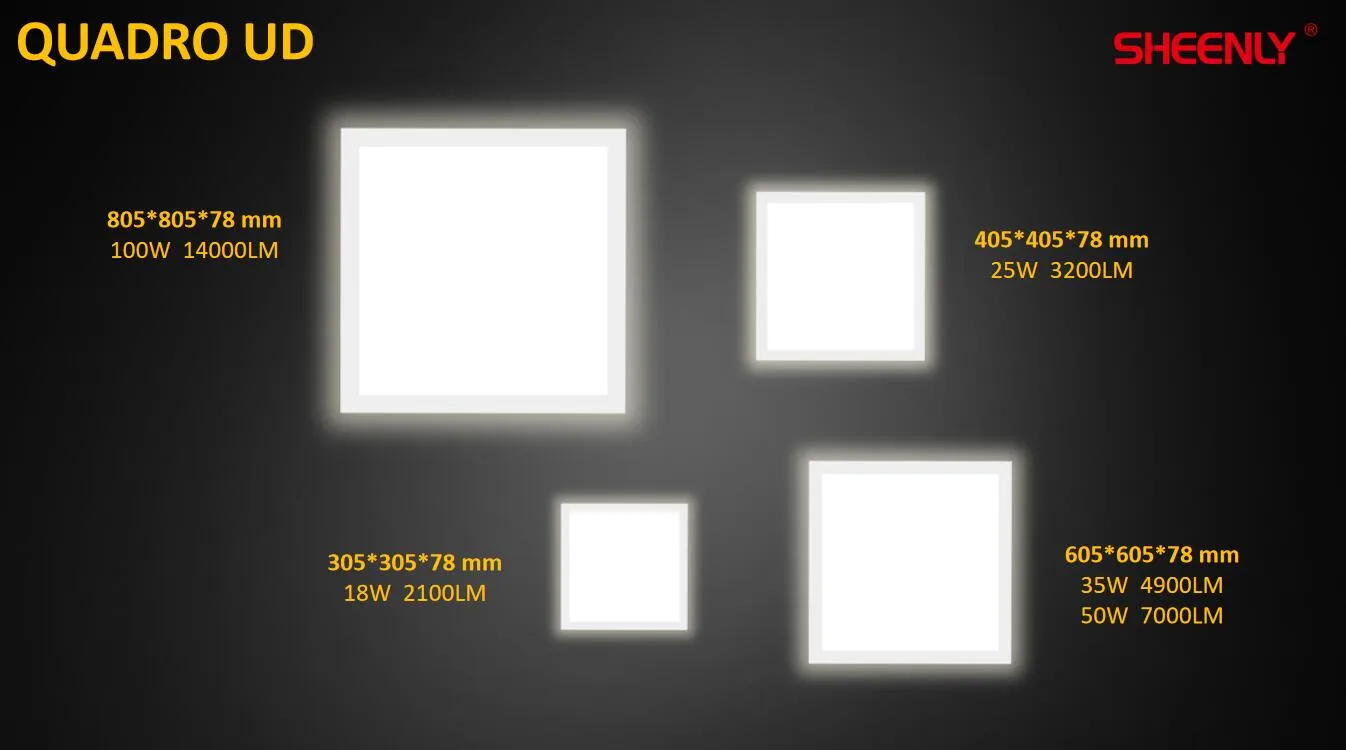

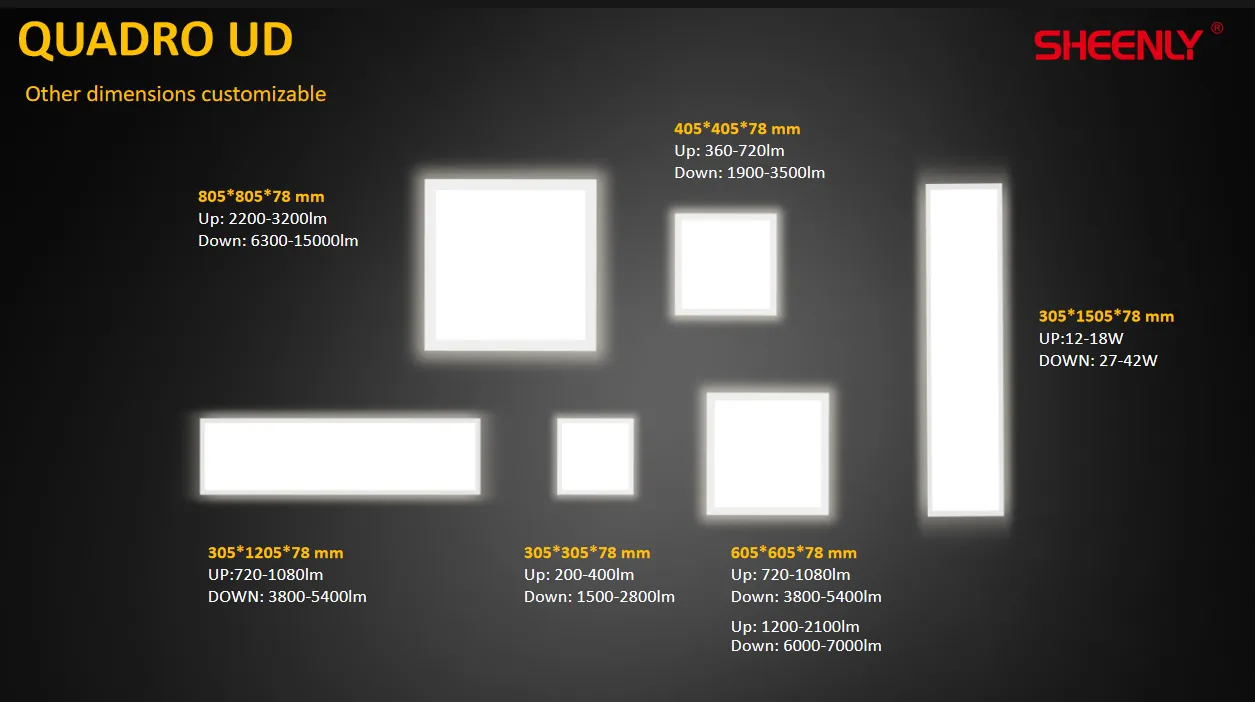

Product	Part Number	Power（W）	Color	Lumen Output (lm)	RA>	Beam	Dimension [mm]
Quadro UD Square Surface Mounted Luminaire 15%Up 85% Down	SL-PAN-18W-XW-AE	UP: 4-8W DOWN: 13-24W	WW: 3000K NW: 4000K DW: 5000K PW: 5700K	UP: 200-400lm DOWN: 1500-2800lm	80	90°	30530578
	SL-PAN-25W-XW-BE	UP:6-12W DOWN: 15-28W		UP: 360-720lm DOWN: 1900-3500lm			40540578
	SL-PAN-35W-XW-DE	UP:12-18W DOWN: 27-40W		UP:720-1080lm DOWN: 3800-5400lm			60560578
	SL-PAN-50W-XW-XE	UP: 16-30W DOWN: 43-52W		UP:1200-2100lm DOWN: 6000-7000lm			60560578
	SL-PAN-100W-XW-YE	UP: 28-40W DOWN: 45-114W		UP:2200-3200lm DOWN: 6300-15000lm			80580578
	SL-PAN-35W-XW-BM	UP:12-18W DOWN: 27-40W		UP:720-1080lm DOWN: 3800-5400lm			305120578
	SL-PAN-42W-XW-CM	UP:12-18W DOWN: 27-42W		UP:720-1080lm DOWN: 3800-6000lm			305150578

Product	Part Number	Power（W）	Color	Lumen Output (lm)	RA>	Beam	Dimension [mm]
Quadro UD Square Surface Mounted Luminaire 15%Up 85% Down CCT Switchable	SL-PAN-18W-XW-AE-S	UP: 4-8W DOWN: 13-24W	CCT Switchable	UP: 200-400lm DOWN: 1500-2800lm	80	90°	30530578
	SL-PAN-25W-XW-BE-S	UP:6-12W DOWN: 15-28W		UP: 360-720lm DOWN: 1900-3500lm			40540578
	SL-PAN-35W-XW-DE-S	UP:12-18W DOWN: 27-40W		UP:720-1080lm DOWN: 3800-5400lm			60560578
	SL-PAN-50W-XW-XE-S	UP: 16-30W DOWN: 43-52W		UP:1200-2100lm DOWN: 6000-7000lm			60560578
	SL-PAN-100W-XW-YE-S	UP: 28-40W DOWN: 45-114W		UP:2200-3200lm DOWN: 6300-15000lm			80580578
	SL-PAN-35W-XW-BM-S	UP:12-18W DOWN: 27-40W		UP:720-1080lm DOWN: 3800-5400lm			305120578
	SL-PAN-42W-XW-CM-S	UP:12-18W DOWN: 27-42W		UP:720-1080lm DOWN: 3800-6000lm			305150578
