3 Step Tunable White Panel Light

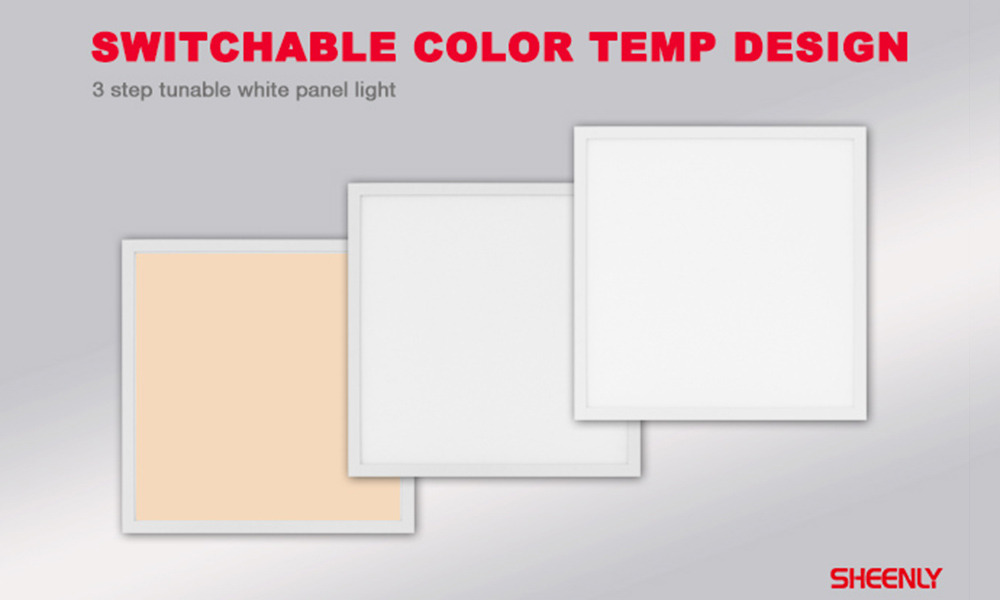

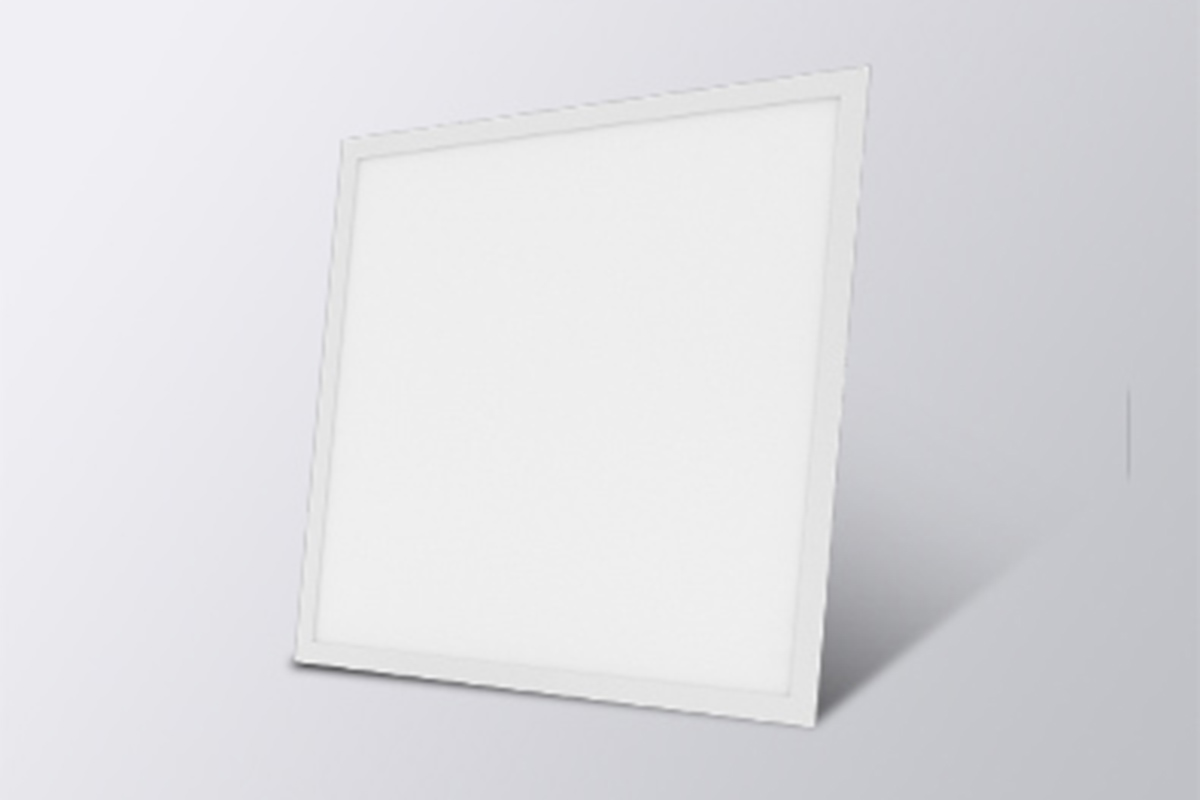

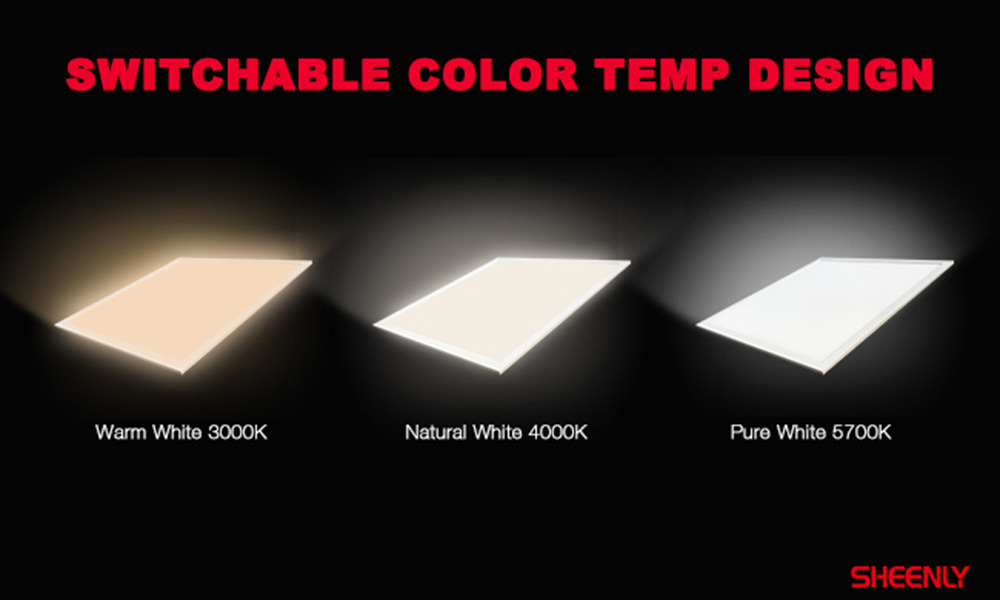

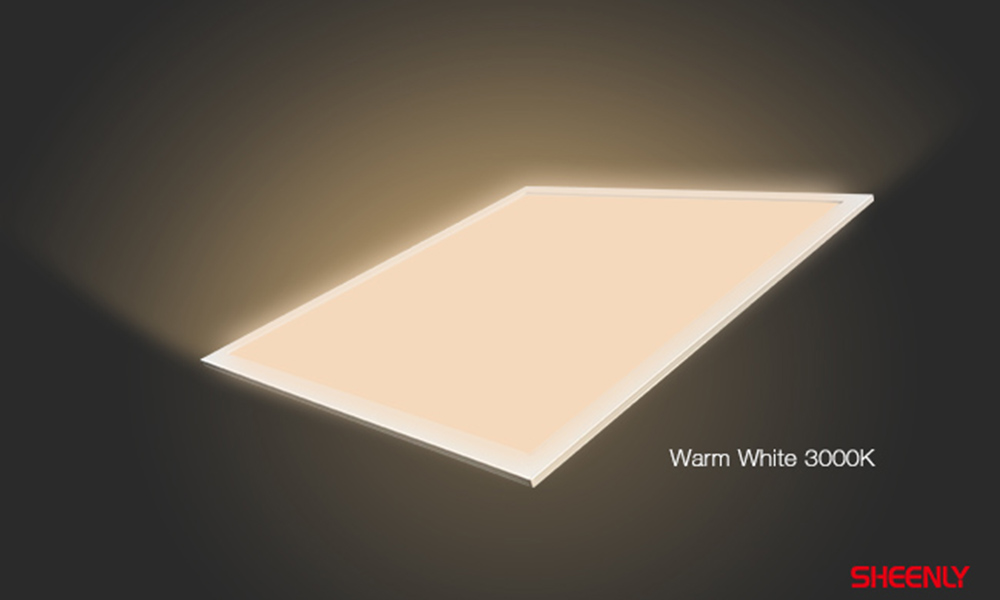

Sheenly 3 Step Tunable White Panel has three fixed CCT 3000K+4000K+5700K, CCT can be switched by sliding button on the cable or a CCT tunable driver. This kind of panel aims to help you release the stock pressure, it's very attractive and functional. Only need to stock one panel, you can have all the three color temperatures for option.

+86-21-64113138

sales@sheenly.com

+86-18221251137

3 Step Tunable White Panel Light

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Advantage

Features

1. Efficiency up to 120 lm/w, UGR<19 optional, SDCM<=4

2. CRI >80, ErP compatible

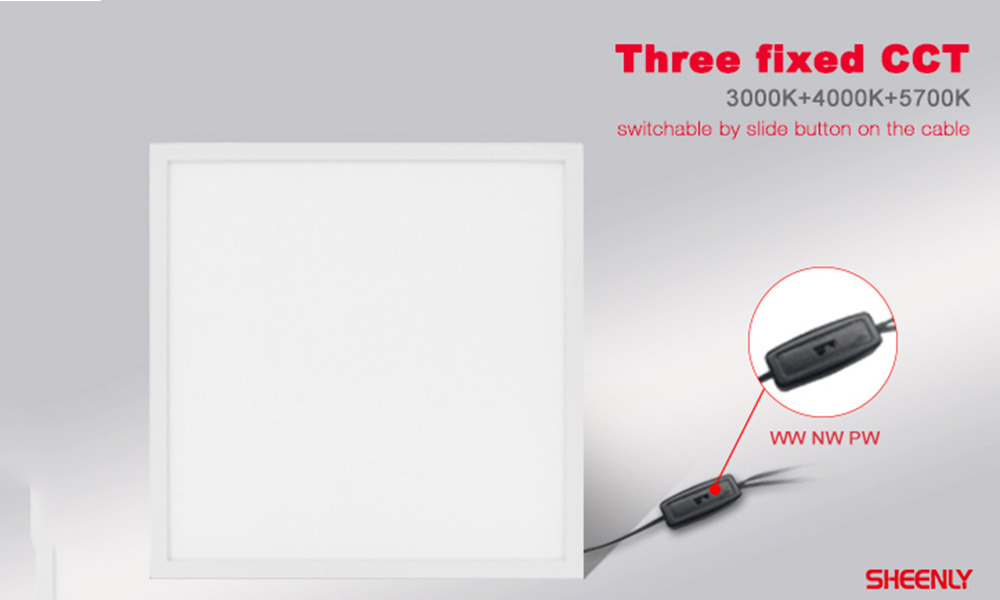

3. CCT can be switched by sliding button on the cable or a CCT tunable driver,

4. Functional and Release stock pressure

5. Easy and various installation styles for different ceiling, plasterboard, etc.

6. Dimmable compatible with Dali / Sensor

7. Customized size accepted

8. 5 years guarantee

Product	Part Number	Power	Color	Lumen Output (lm)	Ra >	Beam	Dimension [mm]
3 Step Tunable White Panel	SL-PAN-28W-TW-AN	28W	WW: 3000K NW: 4000K DW: 5000K PW: 5700K	2800lm	80	120°	59559510mm
	SL-PAN-35W-TW-AN	35W		3500lm	80	120°	59559510mm
	SL-PAN-28W-TW-LS	28W		2800lm	80	120°	62262210mm
	SL-PAN-35W-TW-LS	35W		3500lm	80	120°	62262210mm
