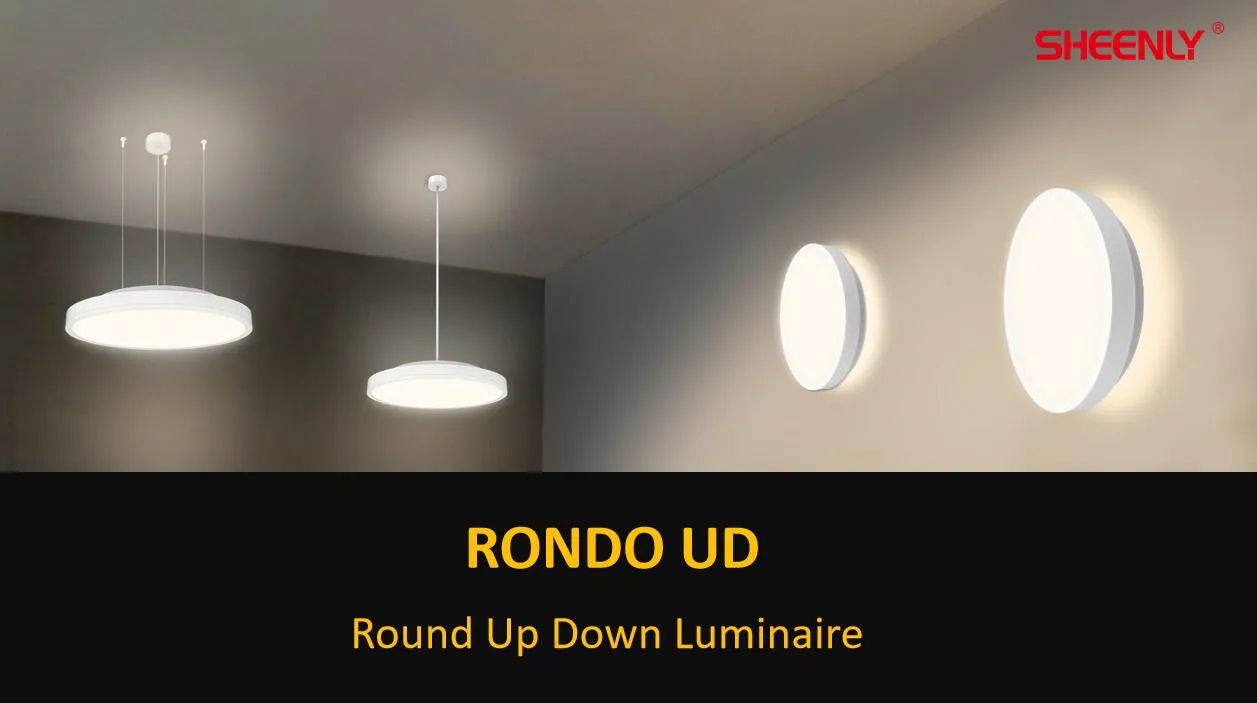

RONDO UD Round up down Luminaire

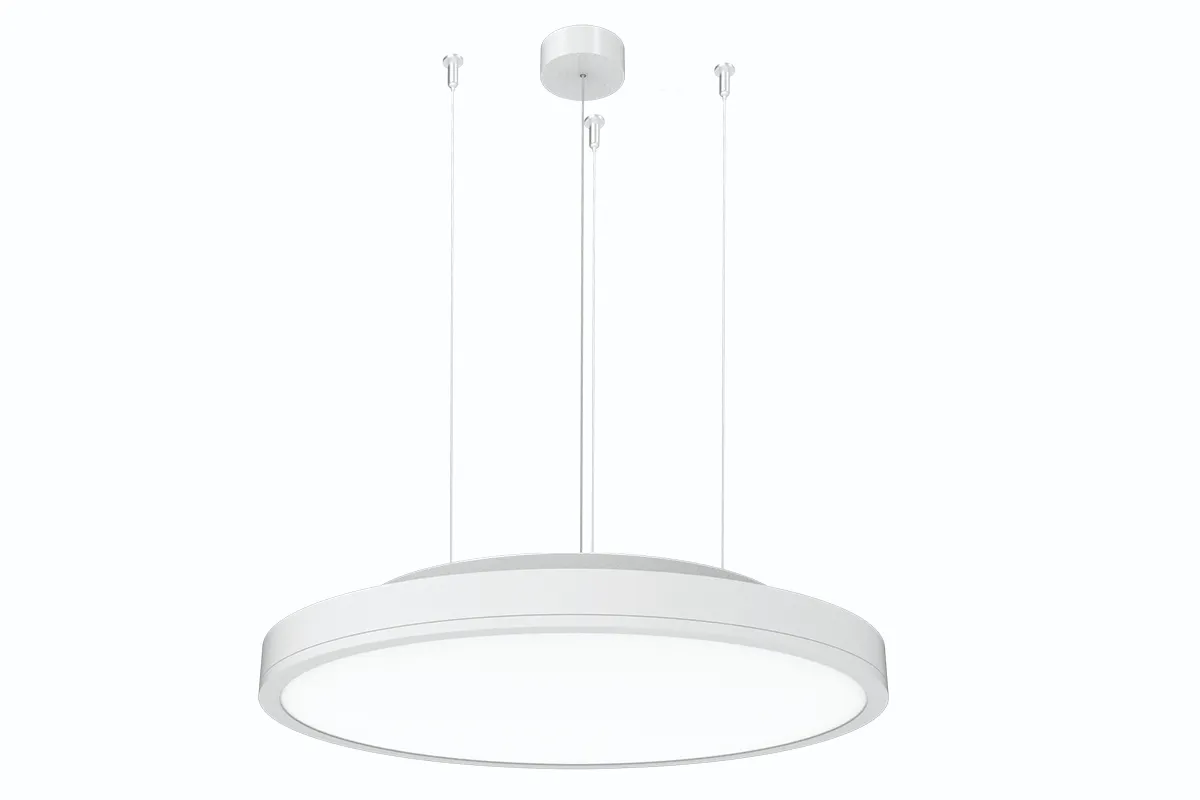

Rondo UD Evolvement from the Rodo family, Rondo UD is an allrounder that is able to fulfill surface, pendent and wall mounted applications.  The Rondo Ud has a timelessly trendy appearance, and its bended aluminum frame delivers intense touch of build quality.

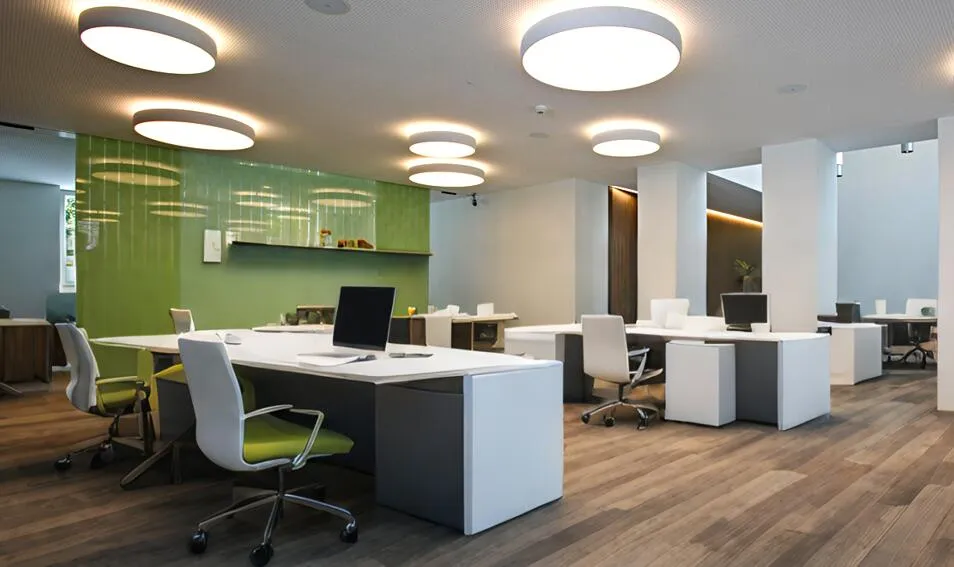

Rondo UD illuminates the front side as well as the back side by creating the so called Halo Effect.  This feature can instantly enhance the vibe of any space.  It provides outstanding homogeneity on the lighting surface, and further more thanks to the latest engineered optics for low glare, the Rondo UD is fit for core office areas, as well as all other public open spaces such as administration, shops, restaurant and so on.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Advantage

Main Features:

  1. Outstanding glare control UGR<19
  2. Up lighting as standard, and higher up-lighting lumen package available as option
  3. For surface / wall / pendent mounted
  4. High lighting efficiency staring from 130lm/w and optional for more
  5. Optional frame color upon request
  6. Long service life and extremely installation and maintenance friendly
  7. Environmental friendly, fully replaceable components
  8. Supports optional SCCT, Multi-lumen, Dali, sensors, emergency gear

Product

Part Number

PowerW

Color

Lumen Output

(lm)

RA>

 Beam

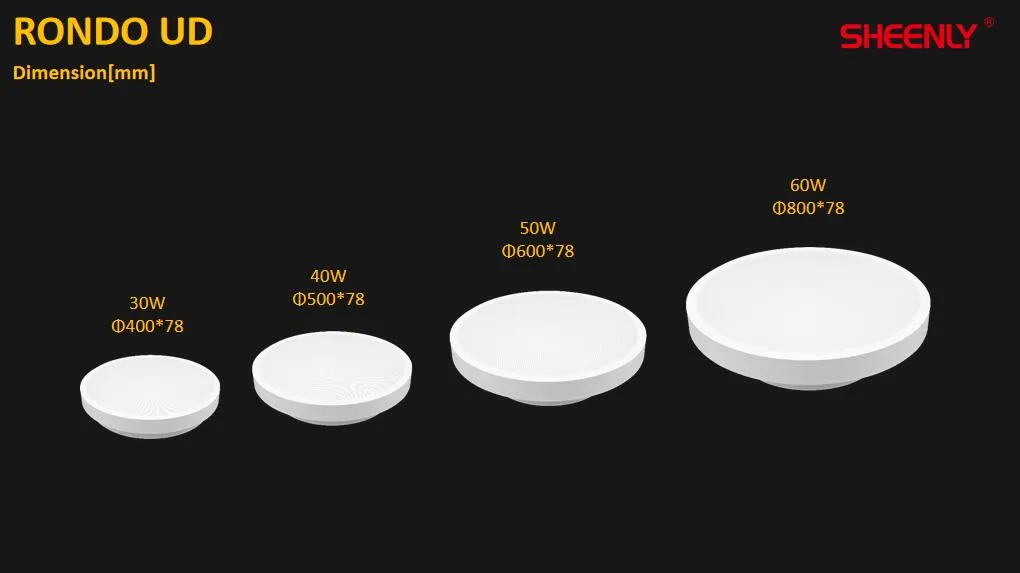

Dimension

[mm]

Rondo  UD

                  Round Surface Mounted Luminaire



10%Up

90% Down

SL-PAN-30W-XW-R400

30W

WW: 3000K

NW: 4000K

DW: 5000K

PW: 5700K

3900



80



90°

Φ400*78

SL-PAN-40W-XW-R500

40W

5200

Φ500*78

SL-PAN-50W-XW-R600

50W

6500

Φ600*78

SL-PAN-60W-XW-R800

60W

7800

Φ800*78

Rondo  UD

                  Round Surface Mounted Luminaire



10%Up

90% Down



CCT Switchable

SL-PAN-30W-XW-R400-S

30W









3000~5700K



 CCT Switchable

3900



80

















90°

Φ400*78

SL-PAN-40W-XW-R500-S

40W

5200

Φ500*78

SL-PAN-50W-XW-R600-S

50W

6500

Φ600*78

SL-PAN-60W-XW-R800-S

60W

7800

Φ800*78
