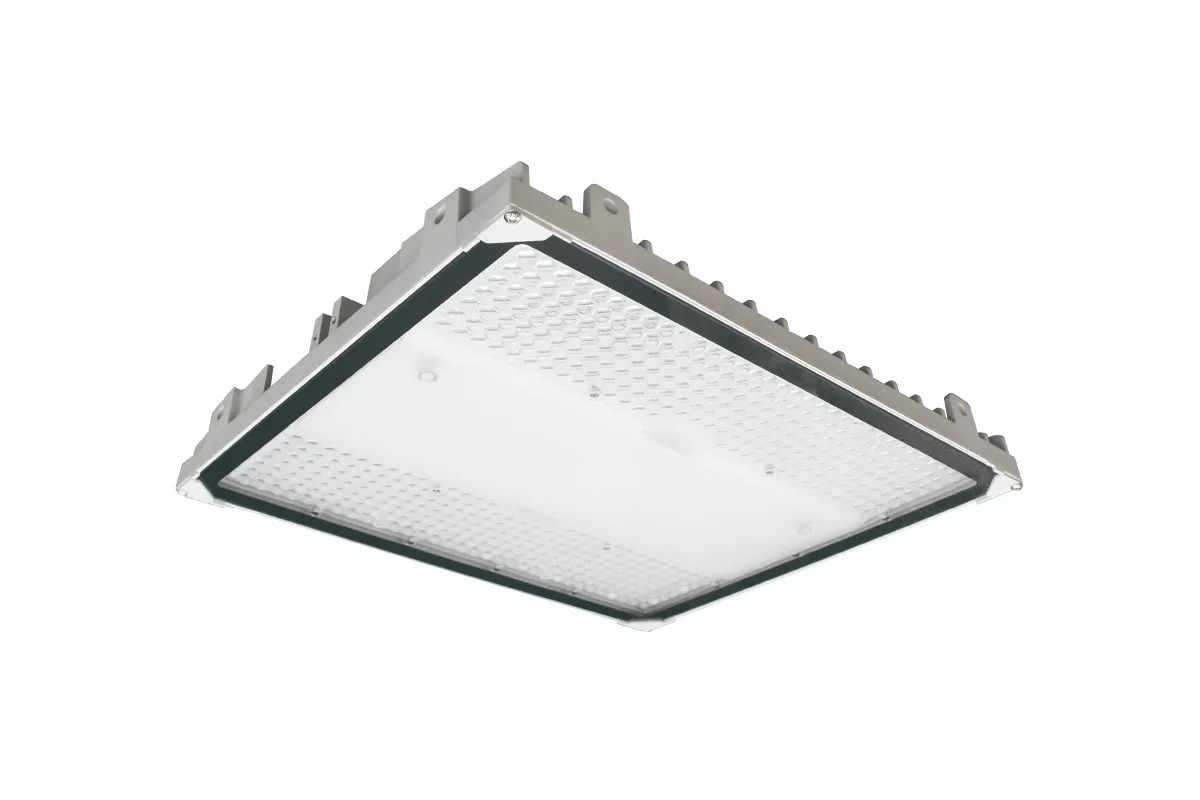

Dynamo is a new generation of high-lumen package lighting fixtures. Thanks to its innovative design, Dynamo offers exceptional versatility for applications across various industries.
Dynamo is ideal for high-lumen lighting applications that demand exceptional light quality, rock-solid reliability, high intelligence, and zero downtime. It is ideally suited for airports, train stations, exhibition halls, production facilities, logistics areas, and ultra-high-ceiling applications
Features:
-- Designed for both indoor & outdoor
-- Can be used as Highbay, Lowbay or Flood Light
-- Features symmetric light distribution as Round highbay; and asymmetric light distribution as linear highbay
-- Equipped with high lumen package, and multi units can be quickly connected to create ultra high lumen package
-- Glare is as low as an office panel light, 60D UGR<19; 90D UGR<22; 30x70 UGR<22
-- Extremely efficient upto 210lm/w
-- IP65 rated and designed to cope with extreme ambient conditions
L80 100KH @Ta55℃;
L80 50KH @Ta65℃;
Surge protection upto 10KV
-- Designed for integration of various ECGs, emergency, Dali D4i, HCL, sensor, wired and wireless controllable
-- A product of Eco design concept, where all components are either repairable or replaceable
|
Product |
Part Number |
Power(W) |
Color |
Lumen Output (lm) |
RA> |
Beam |
Dimension [mm] |
|
Dynamo Modular lighting system upto 210lm/w,Ra>80 Flexible modular design concept, creativity 15%Up 85% Down |
SL-BAY-150W-XW-DM01 |
150W |
WW: 3000K NW: 4000K DW: 5000K PW: 5700K |
27000 |
80 |
90° (60°/ /30x70 assymetric optional) |
400x337x74 |
|
SL-BAY-150W-XW-DM01-D |
|||||||
|
SL-BAY-150W-XW-DM01-D4 |
