RUBIK EVO Modular Highbay Luminaire



Rubik EVO, new generation of high power modular lighting system. Thanks to the design, it is extremely easy to assemble into various formations to target wide range of applications. Hence, Rubik can be purchased in parts for stocking as well as fully assembled luminaire.

Rubik features full heat separation between ECG compartment and light engines, which enables ultimate flexibility in lumen packages, high light efficiency, and convincingly ultra-long service life of >100KH, and the wide range of versions offer most suitable lighting solution for both in/outdoor, warehouse, distribution halls, airports, train stations as well as rough applications and corrosive environments.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Advantage

Features:



1. Easy to assemble, offer in parts or in fully assembled luminaire
2. Ability to cope with rough environment, high humidity, high ambient temperature Ta max 70°C
3. Ultra long service life,  L80> 100000 h (@Ta 50°C), L70> 100000h (@ Ta max 70°C)
4. Rich selection of lumen packages, 15000LM --- 90000LM or more
5. A wide range of modular combinations
6. Comprehensive optic selections
7. Rich list of versions, include standard on/off, Dali, D4i sensor, and special Fail-safe Dual System
8. Up to 190 lm/w lumen efficiency





Product

Part Number

Power(W)

Color

Lumen Output
(lm)

RA>

Beam

Dimension
[mm]









RUBIK EVO
Modular
lighting system

High power
80W~480W

190lm/W
Ra>80

SL-BAY-80W-XW-LF01

80W

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K

15200















80













150°
(60°/90° optional)

451*232*70mm

SL-BAY-80W-XW-LF01-D

SL-LFX-42W-XW-R3-SC

160W

30400

829*232*70mm

SL-BAY-160W-XW-LF02

SL-BAY-320W-XW-LF04

320W

60800

829*391*70mm

SL-BAY-160W-XW-BCR2

160W

30400

813*160*111mm

SL-BAY-160W-XW-BCR2-D

SL-BAY-240W-XW-BCR3



240W

45600

/

SL-BAY-240W-XW-BCR3-D

SL-BAY-320W-XW-BCR4

320W

60800

/

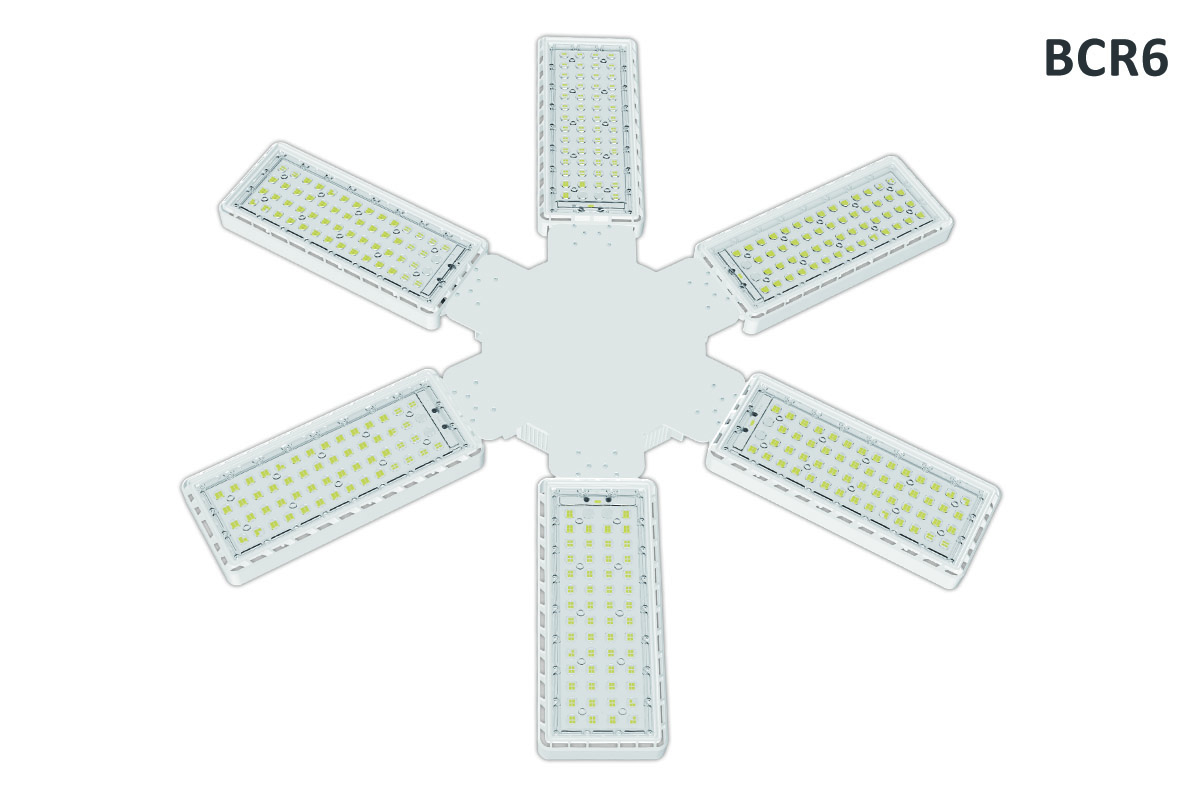

SL-BAY-480W-XW-BCR6

480W

91200

/
