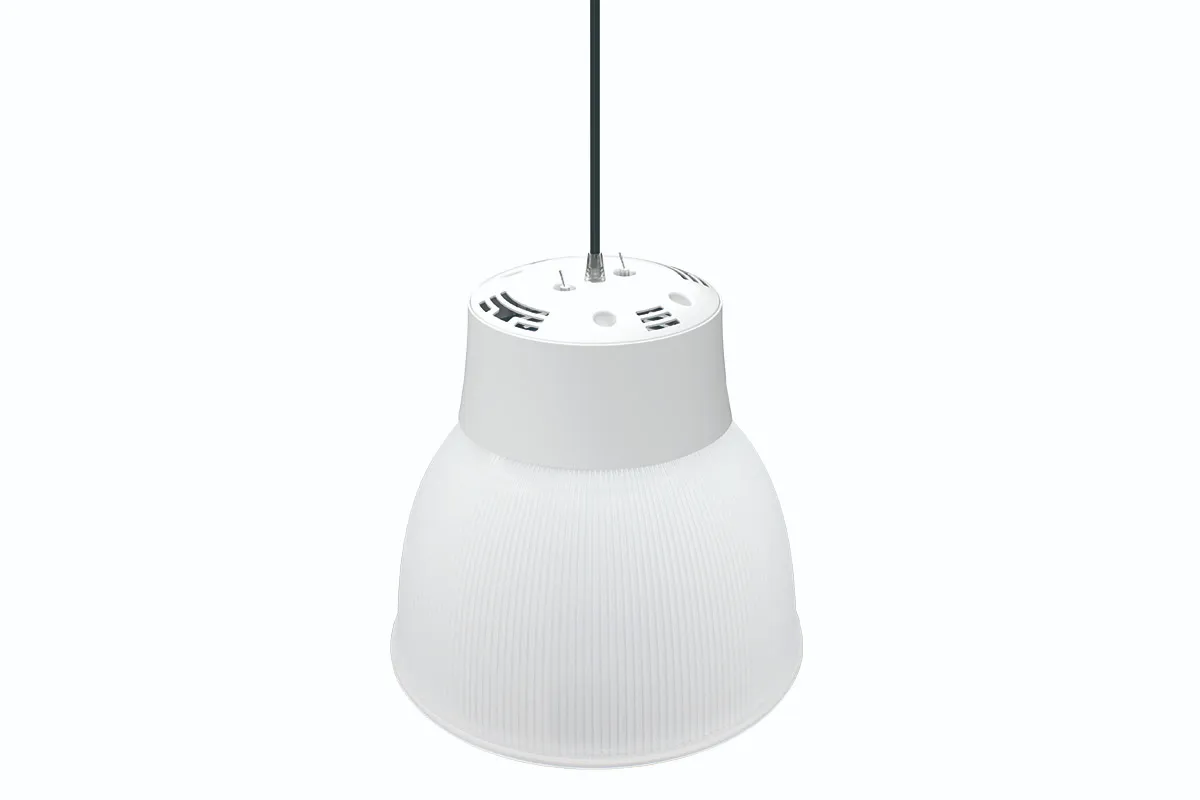

Cloudia mini Commercial Bay Light



The Cloudia mini Series is designed with aesthetically pleasant appearance, versatile function with multi-lumen, multi-CCT and excellent glare control, which makes it the most harmonious luminaire for different request of lumen output and lighting environment. Widely used to supermarket, shopping mall, office building, showrooms, car dealer shops, retailing shops,etc.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Advantage

Features



1. 3-in-1 Power & CCT Tunable switch provides versatility for different request of lumen output and lighting environment.



2. Optically refined Polycarbonate reflector was used to enhance surrounding lighting and excellent glare control UGR<19, brings Eyes comfort.



3. Enhance local area lighting effects.



4. Ingenious hidden heat dissipation channel for ensuring a stable and long service life of the LEDs.



5. Aluminum housing is designed with soft curve outlines for minimal dust accumulation



6. Efficiency 120lm/w and optionally 160lm/w



7. Compatible but not limited to the following:

--Track mount

--Dali, 0-10V

--Emergency Gear

--Sensor and other smart gear



  •
  •
  •
  •

Product

Part Number

Power

Color

Lumen Output
(lm)

Beam

Dimension
[mm]

Cloudia MINI Commercial

Bay light / Pendant light

SL-BAY-60W-XW-CM

60W/ 32W/ 25W Tunable

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K

7200/3840/ 3000lm Adjustable

75°

Φ310*272

SL-BAY-60W-XW-CT

60W/ 32W/ 25W Tunable

3000/4000/ 5000K Tunable

7200/3840/ 3000lm Adjustable

75°

Φ310*272
