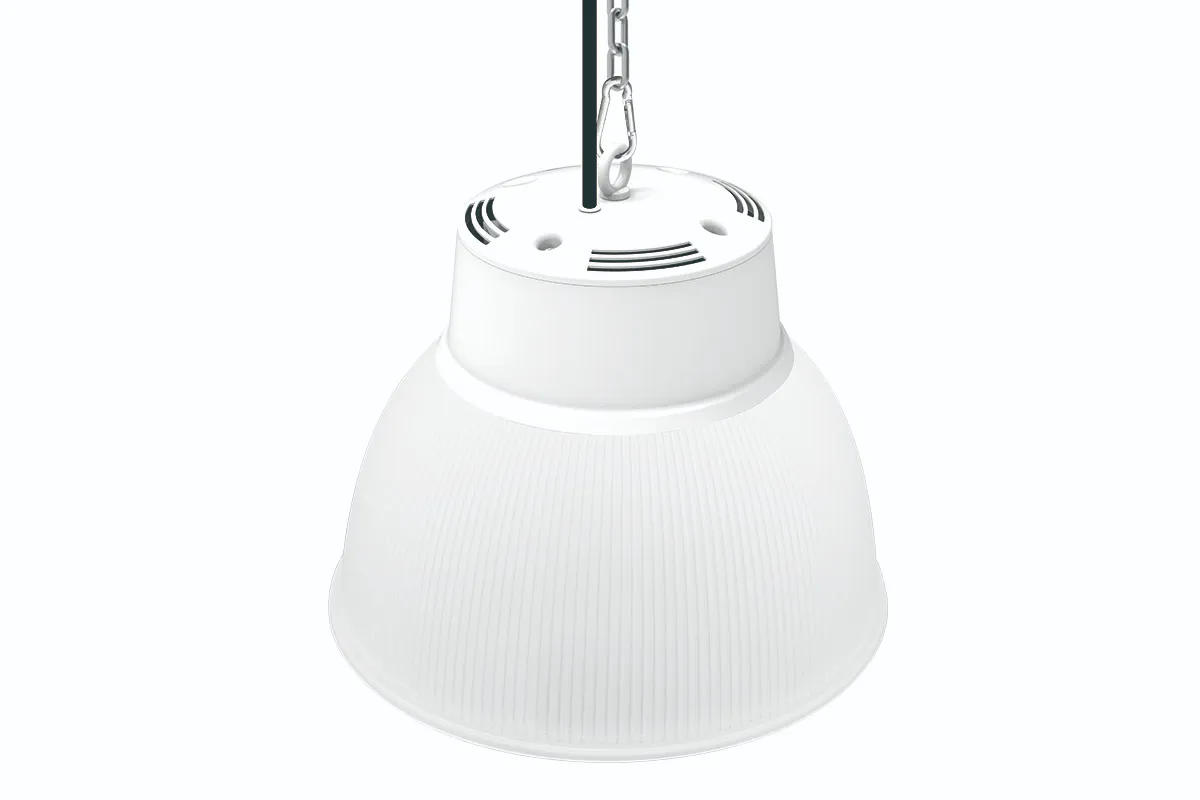

The Cloudia Series is designed thru the concept of 'Modern Technology In The Classic Look'. Its aesthetically pleasant appearance makes it the most harmonious luminaire which fits effortlessly into any kinds of architect style that requires a higher lumen supply, e.g. shopping mall, canteen, church, halls, office building, showrooms, etc.
Features
1. 40W—120W power range provides versatility for height/low ceiling, ambient/focal lighting
2.Optically refined Polycarbonate reflector was used to enhance surrounding lighting and excellent glare control UGR<19
3. Ingenious hidden heat dissipation channel for ensuring a stable and long service life of the LEDs
4. Aluminum housing is designed with soft curve outlines for minimal dust accumulation
5. Efficiency 130lm/w and optionally 160lm/w
6. Compatible but not limited to the following:
--Track mount
--Multi-lumen
--Multi-color
--Dali, 0-10V
--Emergency Gear
--Sensor and other smart gear
Product | Part Number | Power | Color | Lumen Output (lm) |
Beam | Dimension [mm] |
Cloudia Commercail HighBay 130lm/W UGR19 IP65 |
SL-BAY-80W-XW-CN | 80W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K |
10400 | 90° | Φ410*289 |
SL-BAY-120W-XW-CN | 120W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K |
15600 | 90° | Φ410*289 | |
Cloudia Commercail HighBay Up to 160lm/W UGR19 IP65 |
SL-BAY-80W-XW-HC | 80W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K |
12800 | 90° | Φ410*289 |
SL-BAY-120W-XW-HC | 120W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K |
19200 | 90° | Φ410*289 |
