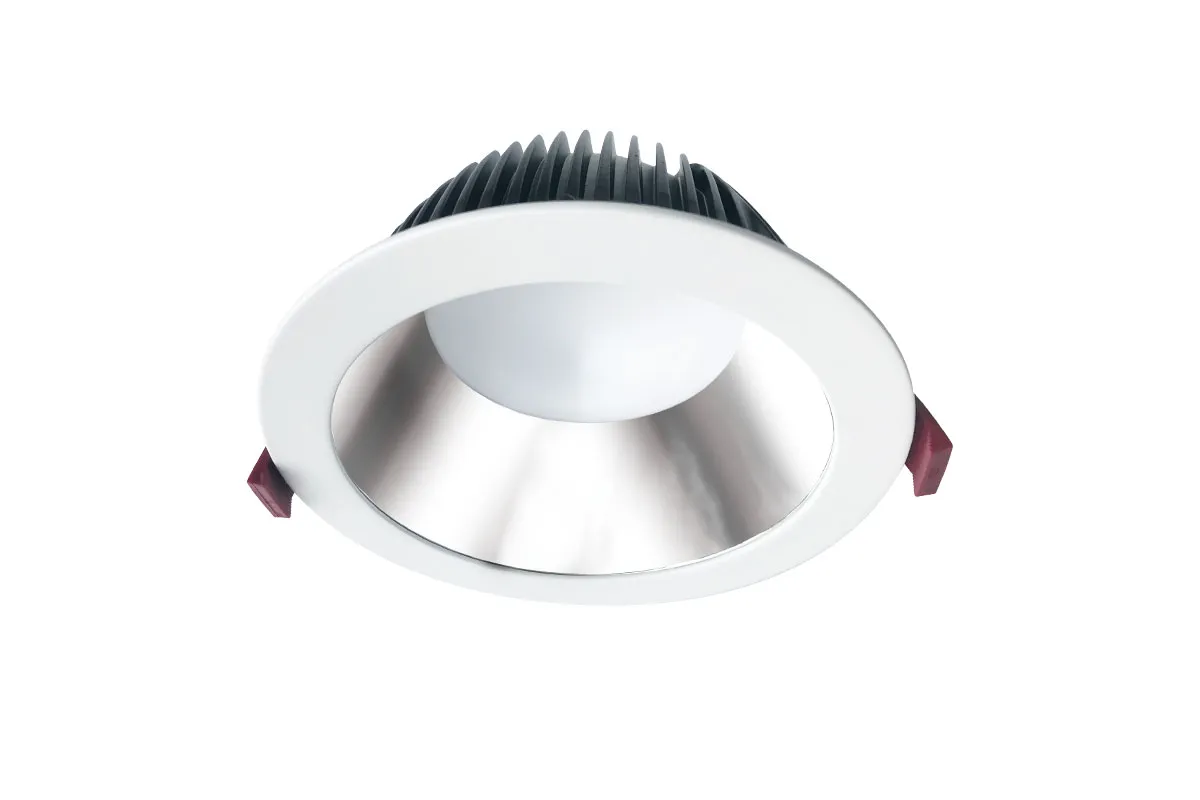

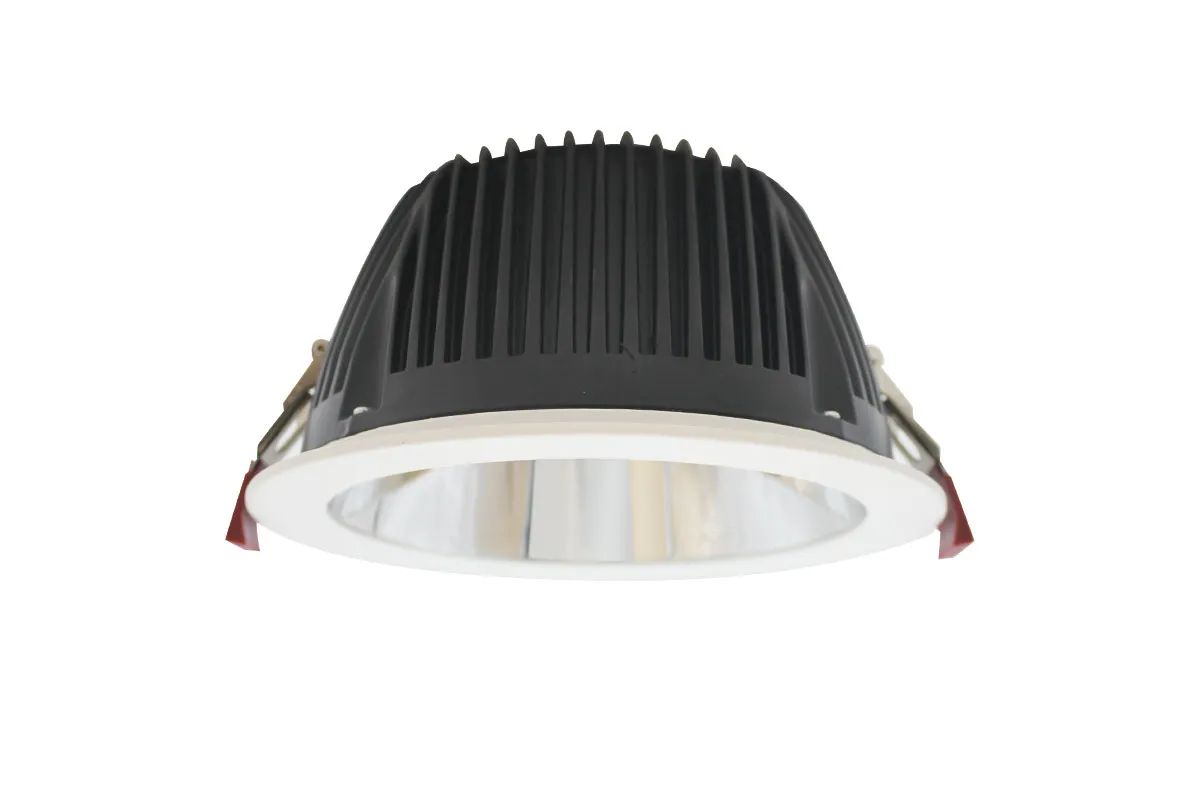

R Series Flat Down light



Common Round downlight, basic but essential lighting fixtures which occupies the biggest indoor lighting segments. Their compact sizes lead to high heat concentration, and have by far the highest failure rate among all lighting fixtures.

Sheenly R-series flat downlight was specifically designed to overcome this issue, and won over the years, numerous customers’ recognitions for the best heat management, high reliability, homogenous lighting surface and excellent light quality and efficiency.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Advantage
Features

1. Thick but necessary structural designs provides extra strength towards deformation, 3 times more material compare to low cost models in the market
2. Generosity at heat dissipation area ensures the specified lifetime, better lumen maintenance and higher total lumen output
3. PMMA light guide, free of yellowing issue
4. ENEC certified, 5 years warranty, flicker free driver
5. IP44 front-side, sufficient to prevent moisture vapor while being used in places like, Kitchens, bathrooms, and other wet areas

  •
  •
Product Part Number Power Color Lumen Output
(lm)
Beam Dimension
[mm]
R2.5
IP44
SL-PAN-06W-WW-R25 6W WW: 3000K 450 120° Ø93*12
CutOut: Ø68
SL-PAN-06W-NW-R25 NW: 4000K
SL-PAN-06W-PW-R25 PW: 5700K
R4
IP44
SL-PAN-08W-WW-R4 8W WW: 3000K 640 120° Ø142*12
CutOut: Ø125
SL-PAN-08W-NW-R4 NW: 4000K
SL-PAN-08W-PW-R4 PW: 5700K
R6
IP44
SL-PAN-15W-WW-R6 15W WW: 3000K 1200 120° Ø180*12
CutOut: Ø160
SL-PAN-15W-NW-R6 NW: 4000K
SL-PAN-15W-PW-R6 PW: 5700K
R8
IP44
SL-PAN-24W-WW-R8 24W WW: 3000K 2200 120° Ø240*12
CutOut: Ø220
SL-PAN-24W-NW-R8 NW: 4000K
SL-PAN-24W-PW-R8 PW: 5700K
R30
IP44
SL-PAN-30W-WW-R30 30W WW: 3000K 2850 120° Ø300*12
CutOut: Ø278
SL-PAN-30W-NW-R30 NW: 4000K
SL-PAN-30W-PW-R30 PW: 5700K
